Upload a capture, get a Stevens-style annotated decode: sequence, window, RTT, retransmit pathology.
Screenshots from the current build. Select one to open it full size.
ROOT CAUSE ANALYSIS

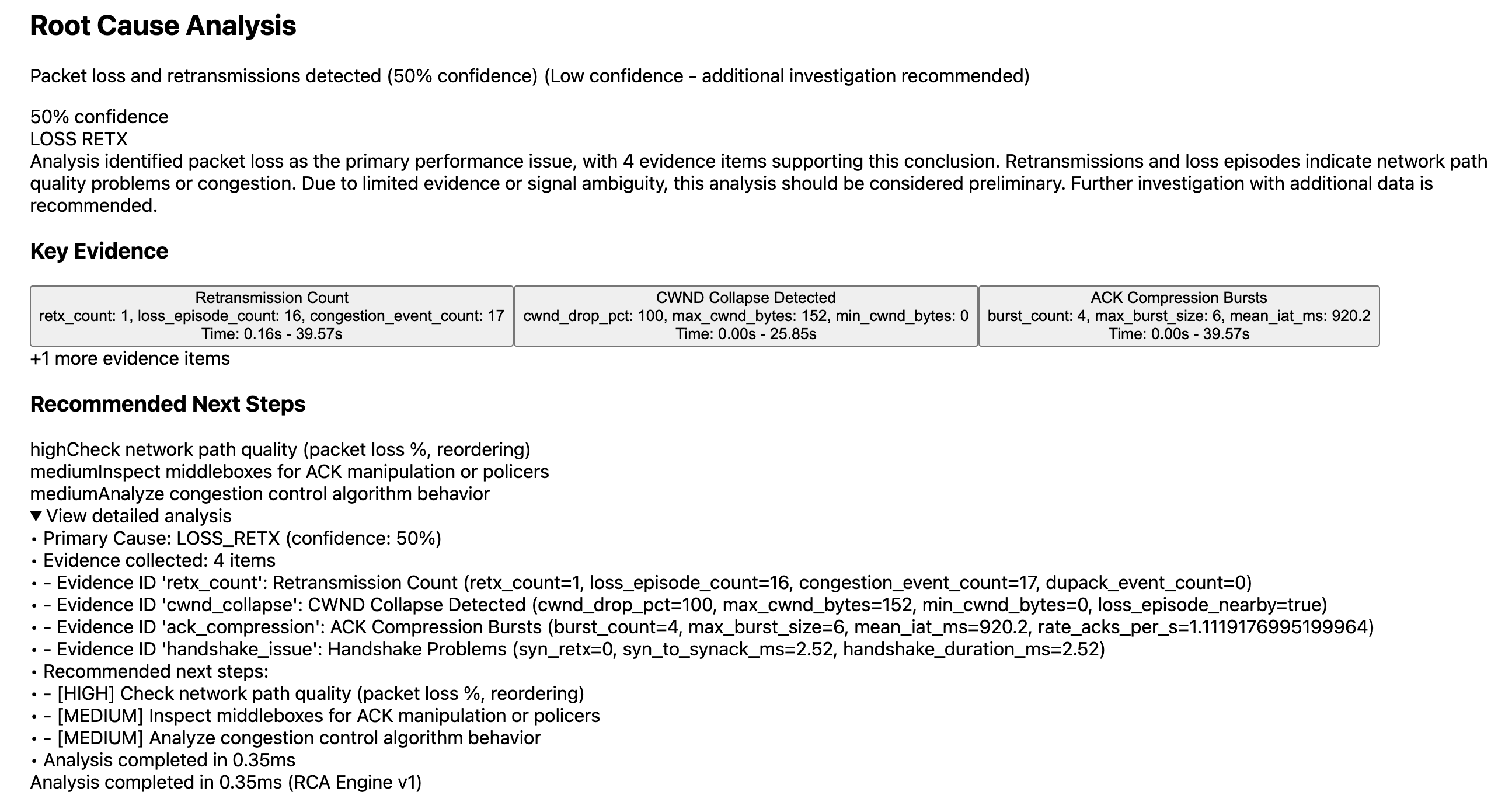

Figure 1.2 Root cause, with the confidence stated and the evidence behind it. Here the verdict is loss and retransmission at 50%, flagged preliminary rather than overstated.
RTT OVER TIME

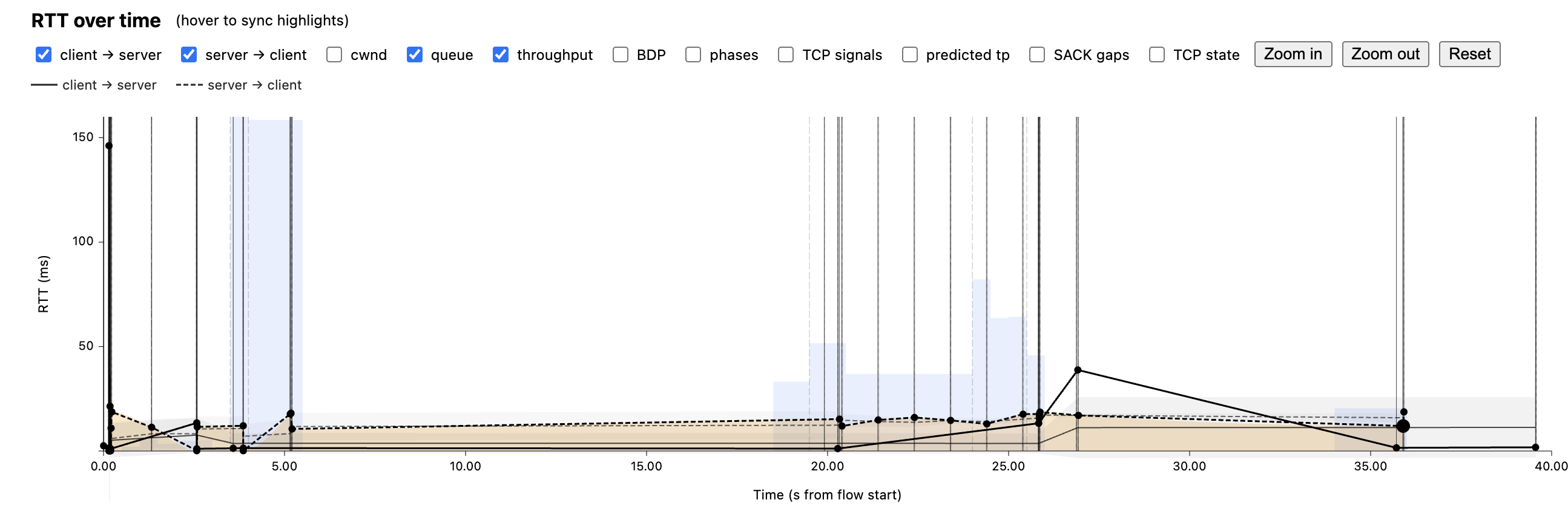

Figure 1.3 RTT per direction across the flow, with queue and throughput overlays. Each layer toggles independently, and hovering syncs highlights with the packet list.
EVENTS & PACKETS

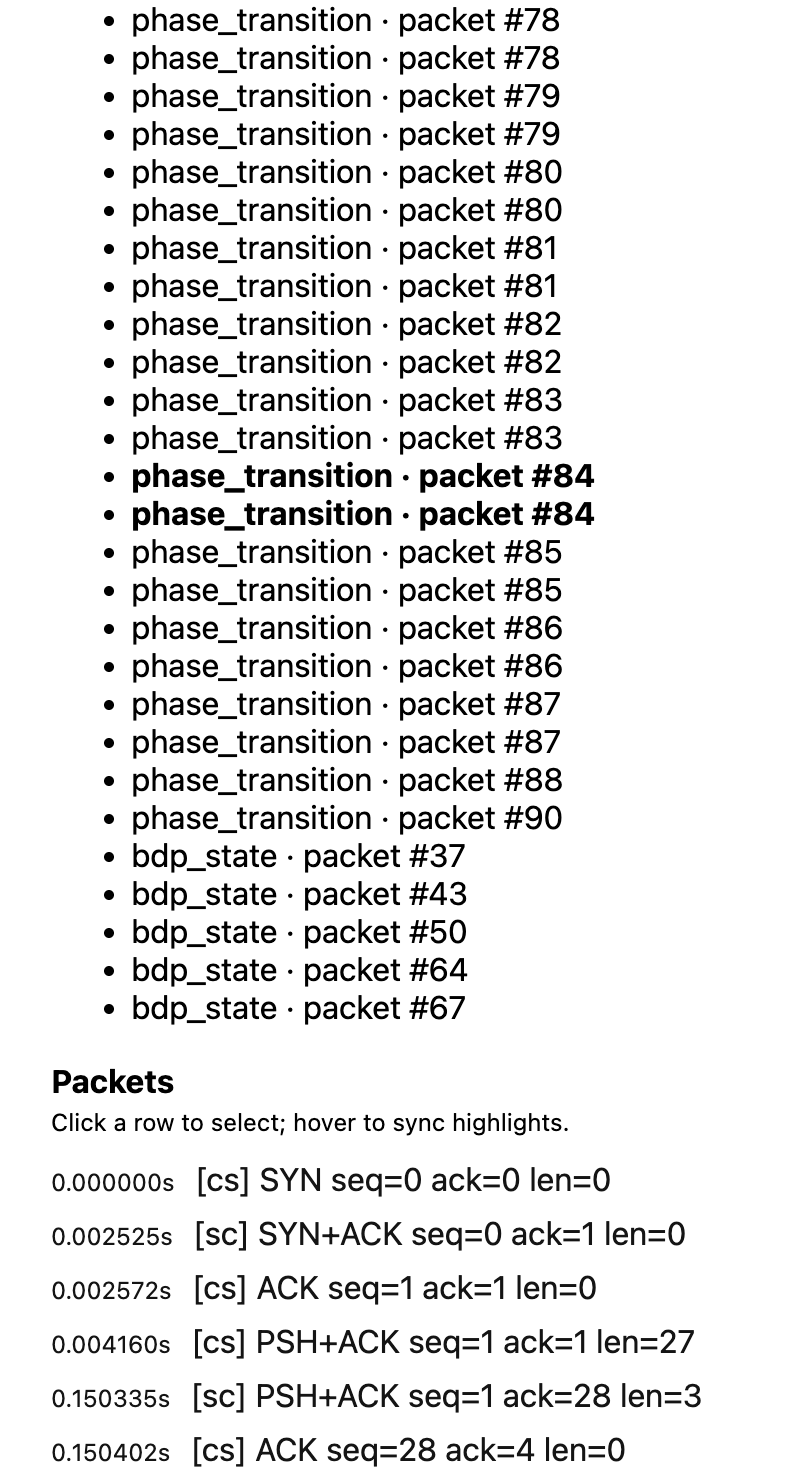

Figure 1.4 The decode underneath. Detected events are keyed to packet numbers, and every packet is timestamped from the first SYN, tagged by direction, and shown with its sequence and ack state.
